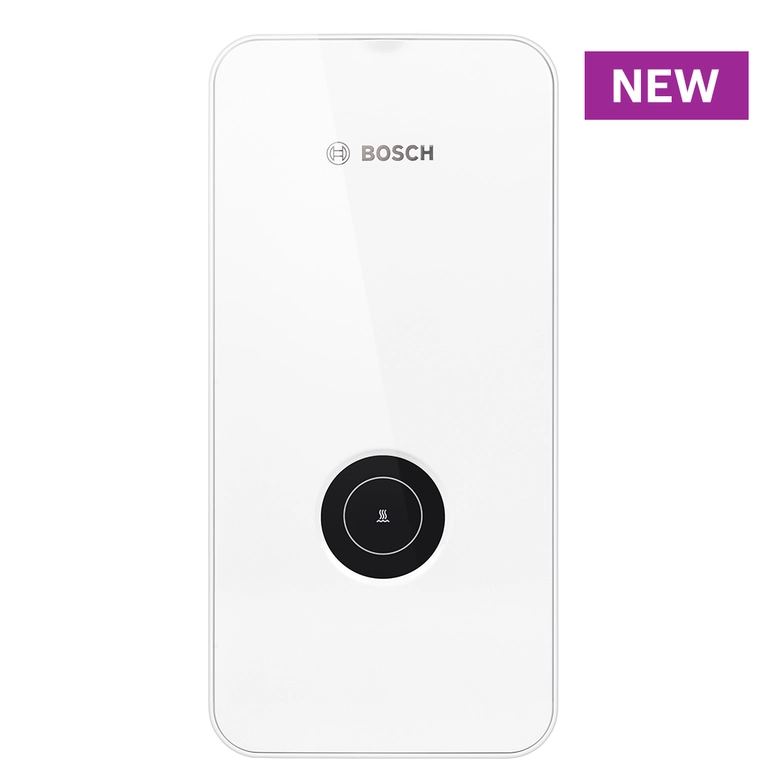

3-Phase Electric Instantaneous Water Heater

Tronic 4000

Download Brochure

New Compact Design Water Heater

A cost-effective water heater that reliably delivers a constant supply of hot water. Thanks to innovative CLICKFIX 2.0 installation technology, appliances can be installed quickly and easily in just three steps. Electronically controlled bare wire technology heats water faster with improved efficiency.

This device will receive all available security updates until at least 31 December 2031.
Made with German engineering.
LED digital display status light and error notification.
Electronic air bubble detection helps prevent potential damage caused by air entering the system during installation.
Three options for electrical supply connection location.

Benefits

Temperature stability

Comfort temperature stability is a top priority for this intelligent Bosch Tronic 3-phase water heater unit. It is cost-effective, as it prevents excessive water heating, ensuring optimal energy efficiency.

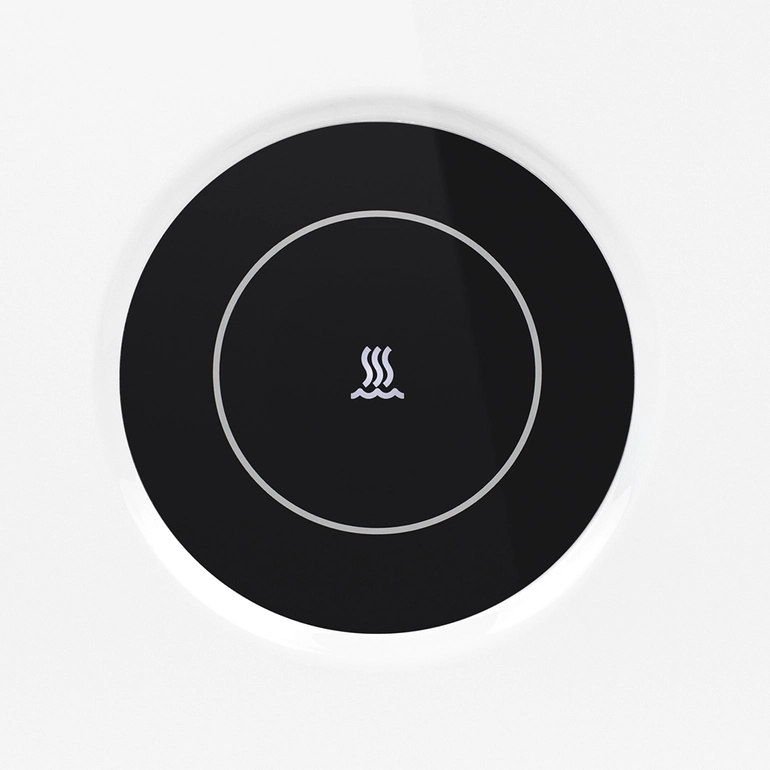

Simple digital LED indicator

The LED status light and error notification provide clear operational updates for both installers and consumers.

Easy installation with CLICKFIX 2.0

Thanks to the advanced CLICKFIX 2.0 installation technology, the transparent backplate allows installers to easily locate drilling holes and adjust screws to ensure a perfect fit. This helps streamline the installation process, whether for a new unit or replacing an old one.

Enhanced air bubble detection

Prevents potential damage caused by air entering the system during installation.

Made in Europe for highest quality and durability.

More about product

Downloads

Technical Details and Documents

Documents

All technical and legal documents

Show now

Technical data

Product type, market-specific

TR4001 L 13 ESOB
Height

484 mm
Width

236 mm
Depth

106 mm
Weight

3.32 kg
Nominal output

13 kW
Electrical fuse

20 A
Max. pressure on the domestic water side

10 bar
Protection class

I
Protection rating (EN 60529)

IP25
Part number

7736507505
